introduction

Arduino
Ultrasound

Ultrasound is an oscillating sound pressure wave with a frequency greater than the upper limit of the human hearing range.
Bats use ultrasound to navigate. They can hear sounds with high frequency. By making sound and hearing echo they determine the distance of objects in their flying area. This is called echolocation.
Their ability to catch flying insects while flying full speed in pitch darkness is astounding. Their sophisticated echolocation permits them to distinguish between a moth (supper) and a falling leaf.
Arduino

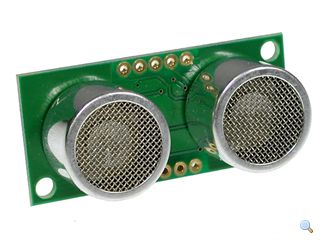

Our ultrasonic sensor has a trigger Tx and a receiver Rx (a microphone). Often it is used, for its appearance, in the little robots as eyes.



Speed = Space / Time


then:

Space = Speed * Time


the speed of sound in air is 343.8 m/s

then, using microseconds and centimeters :
Space = 0,03438 * Time


divided by 2, because ultrasounds go and come back
distance = 0,03438 * Time / 2
then:
distance = 0,01719 * Time


program

Arduino apri il programma


Arduino inizia il laboratorio

algorithm


attrezzaggio

pin9˜ ultrasuoniE Arduino _trigger
pin8 ultrasuoniR Arduino _receiver

variabili

duration = 0
distance = 0

ciclo

SWITCH ON (5 Volt) switch on _trigger component
wait 10 milliseconds
SWITCH OFF   (0 Volt) switch off _trigger component
in the variable duration put the duration of the pulse on the pin: _receiver
the variable distance is equal to the formula duration*0.01720
USB Arduino write on the serial: distance:_cm distance
wait 100 milliseconds

Arduino code

Arduino

copy/past in Arduino

electrical connections

Arduino
Fritzing here Fritzing's file
